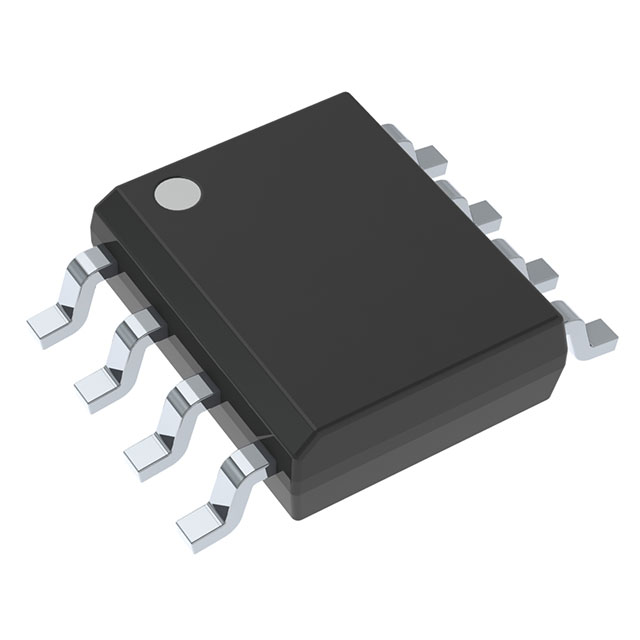

LM555CM

LM555CM

Category: Clock Timer ICs, Mounting Style:SMD; Surface Mount, RoHS:RoHS & Green

Manufacturer :

Texas Instruments

Package :

SOIC

Pin Count :

8

Function Type :

Timers & Support Products

34

Datasheet PDF

PCB Footprint

1

Preview Image

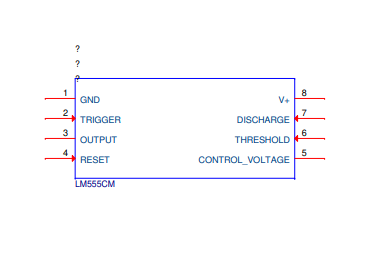

Schematic Symbol

1

Preview Image
Mounting StyleSMD; Surface Mount
RoHSRoHS & Green
Threshold Voltage
Min
  • 0.667 x VCC--
Supply Voltage Range
Min
  • 4.5 V--
Max
  • 16 V--
Duty cycle
Min
  • 0.5--
Max
  • 0.5--
Typ
  • 0.5--
