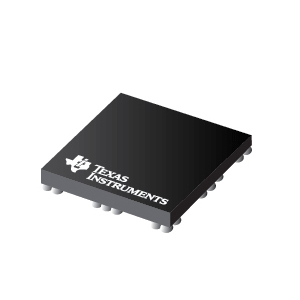

HD3SS214IZXHR

HD3SS214IZXHR

Category: Switch ICs, Mounting Style:Surface Mount, RoHS:RoHS & Green

Manufacturer :

Texas Instruments

Package :

BGA

Pin Count :

50

Function Type :

Power Switch ICs - POE / LAN

47

Datasheet PDF

PCB Footprint

0

Preview Image
Schematic Symbol
Preview Image

This Schematic Symbol is unavailable

Please click the 'Request' button below, and we’ll create it for you ASAP.​

Mounting StyleSurface Mount
RoHSRoHS & Green
Supply Voltage Range
Min
  • 3 V--
Max
  • 3.6 V--
Typ
  • 3.3 V--
Off Time - Max
Max
  • 1 µsDx_SEL/AUX_SEL–to-Switch off (Data and AUX and DDC)
On Resistance - Max
Max
  • 12 ΩVDD = 3.3 V, VCM = 0.5 V – 1.5 V, IO = -40 mA
On Time - Max
Max
  • 1 µsDx_SEL/AUX_SEL–to-Switch on (Data and AUX and DDC)
