74LVC2G125DCURG4

74LVC2G125DCURG4

Category: Driver ICs, Mounting Style:SMD; Surface Mount, RoHS:Compliant

Manufacturer :

Texas Instruments

Package :

SSOP

Pin Count :

8

Function Type :

Driver ICs - Various

36

Datasheet PDF

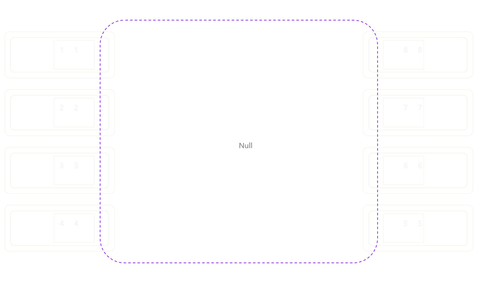

PCB Footprint

0

Preview Image

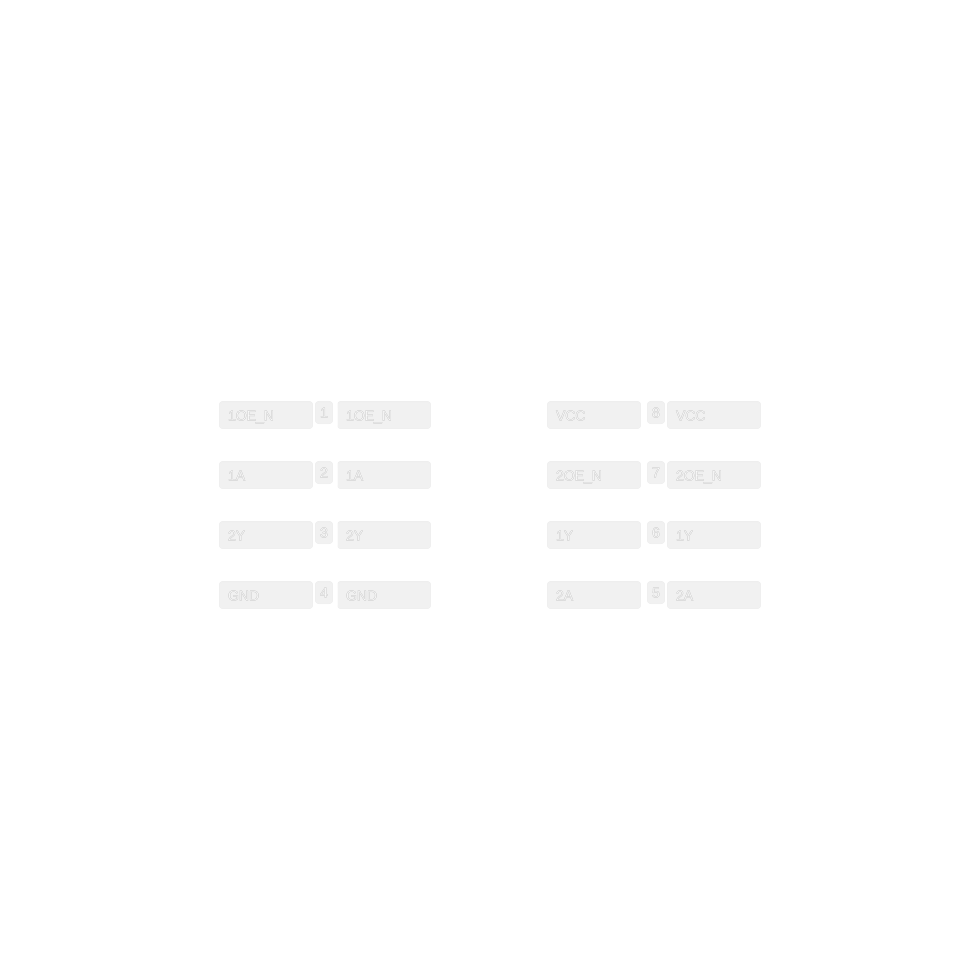

Schematic Symbol

0

Preview Image
Mounting StyleSMD; Surface Mount
RoHSCompliant
Supply Voltage Range
Min
  • 1.65 VOperating
Max
  • 5.5 VOperating
Output Current
Min
  • -32 mAVCC=4.5V, High-level output current
Max
  • 32 mAVCC=4.5V, Low-level output current
Output Voltage
Min
  • VCC-0.1 VIOH=-100 µA, VCC=1.65V to 5.5V
Max
  • 0.1 VIOL=100 µA, VCC=1.65V to 5.5V
Power Dissipation
Max
  • 22 pFOutputs enabled, VCC=5V
Typ
  • 19 pFOutputs enabled, VCC=1.8V
